EEG QCap

Qcap for Mind Media NeXus | Q24

High-Precision, Plug-and-Play Clinical & Research EEG Cap

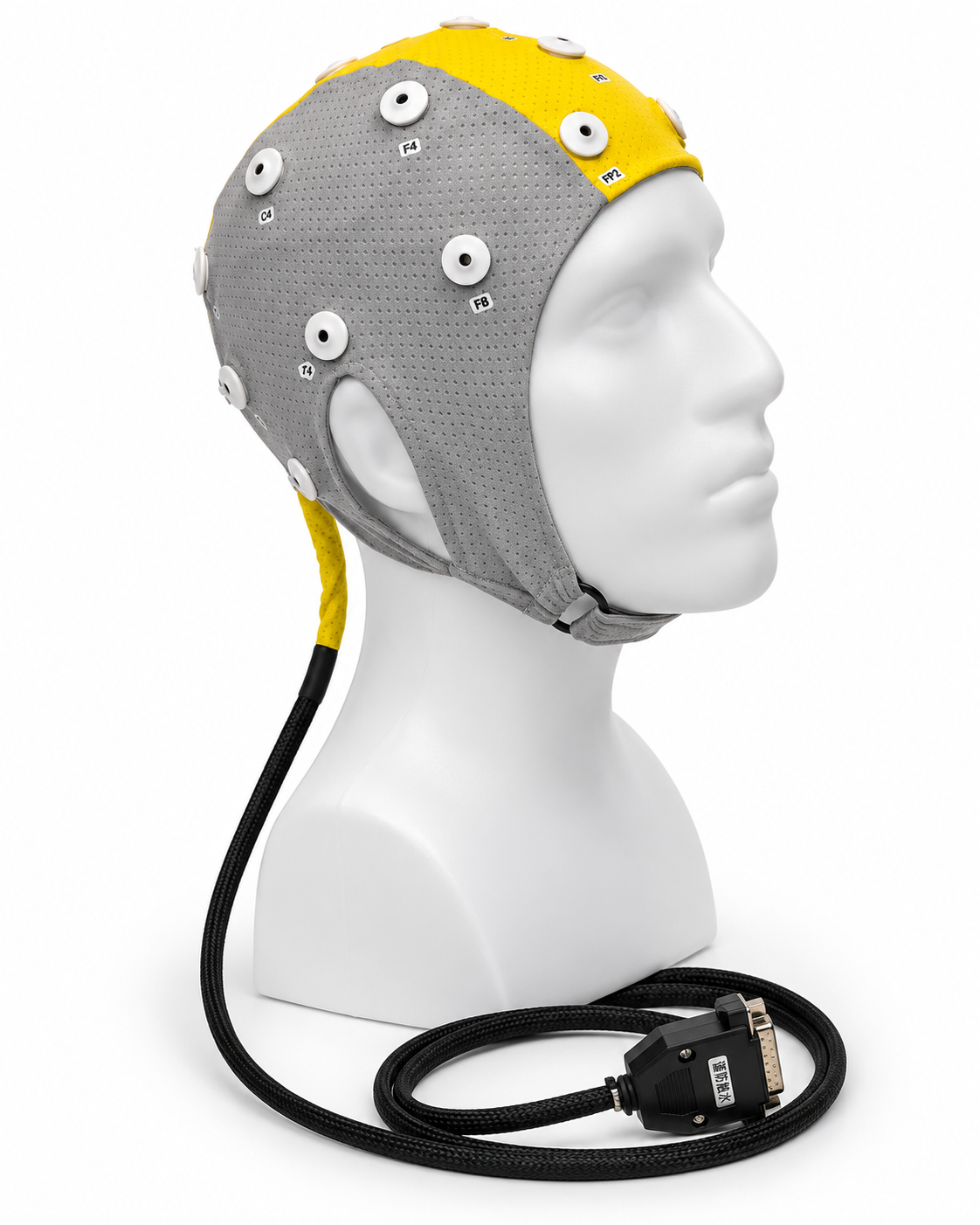

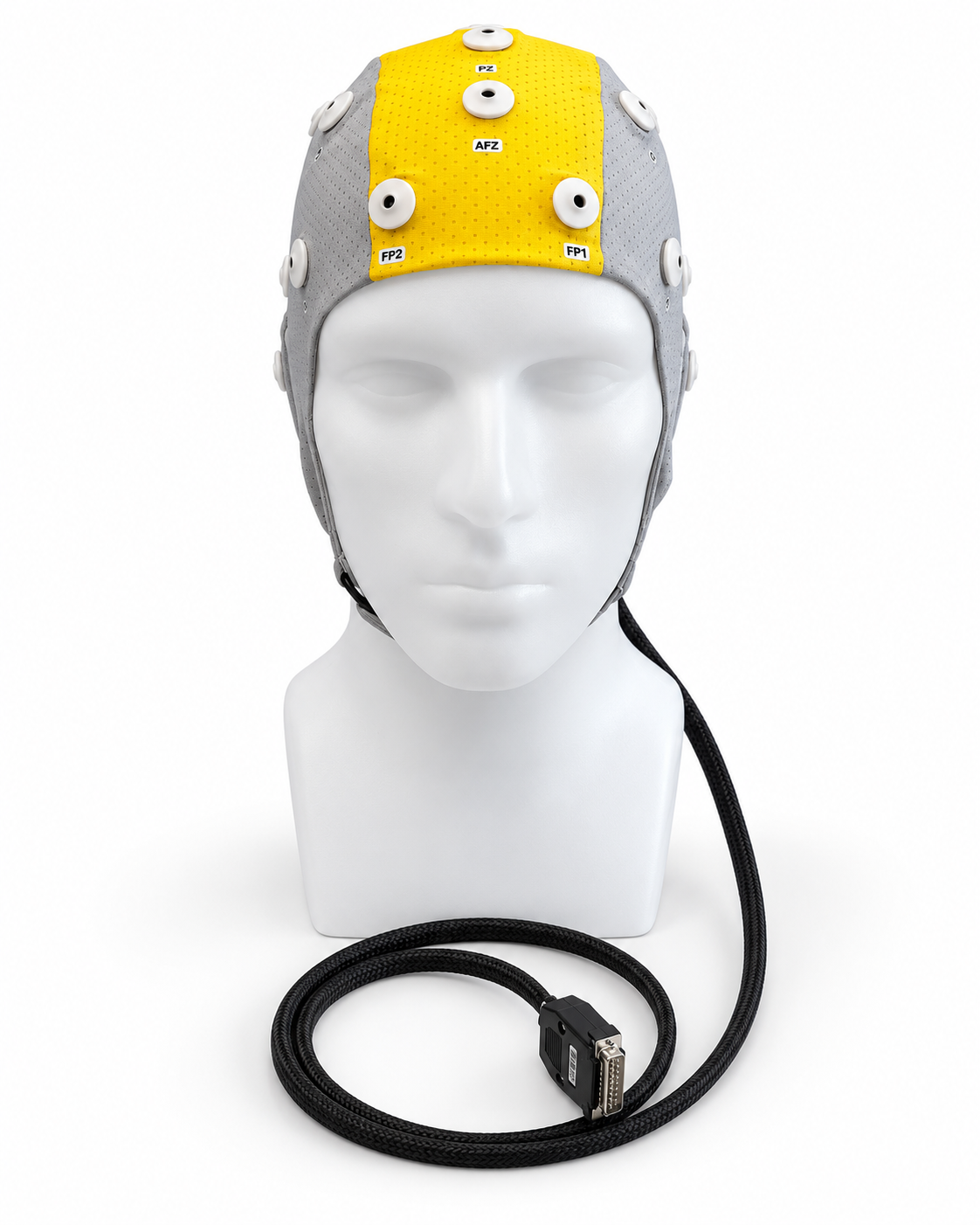

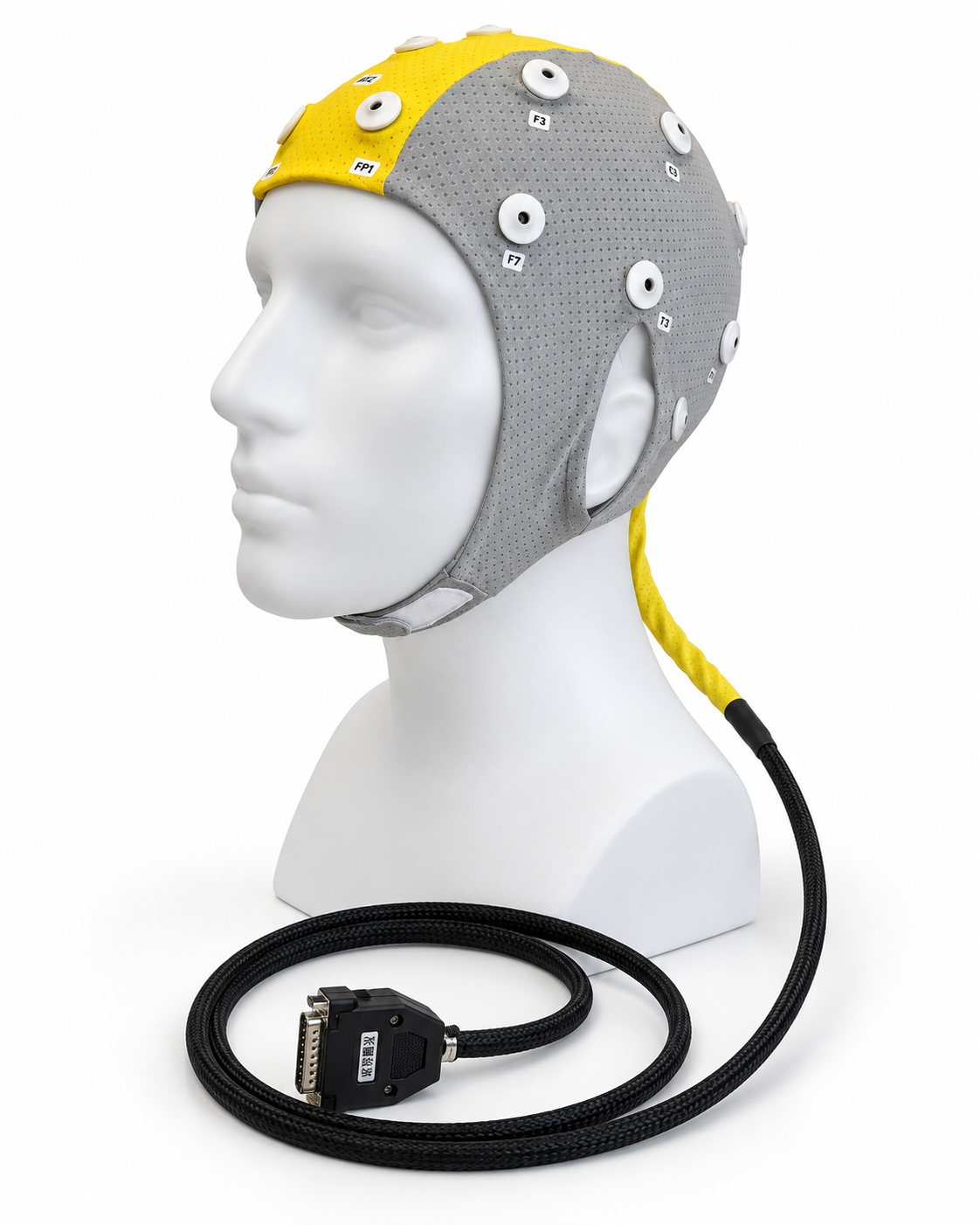

The Qcap is a high-end, clinical and research-grade EEG cap engineered specifically for seamless integration with the Mind Media NeXus | Q24 system. Designed for clinicians, researchers, and neurotherapists who demand uncompromised signal fidelity, the Qcap eliminates setup friction while delivering reliable, high-precision data acquisition.

Key Features

• Sintered Ag/AgCl Electrodes: Features solid sintered silver/silver-chloride electrodes for ultra-low impedance, minimal signal drift, and exceptional long-term stability. Solid material construction ensures zero degradation from repeated washing and disinfection.

• Shielded Cabling: Integrated channel-level shielding blocks ambient 50/60 Hz mains power hum and electromagnetic interference (EMI), drastically minimizing environmental and movement noise without heavy digital filtering.

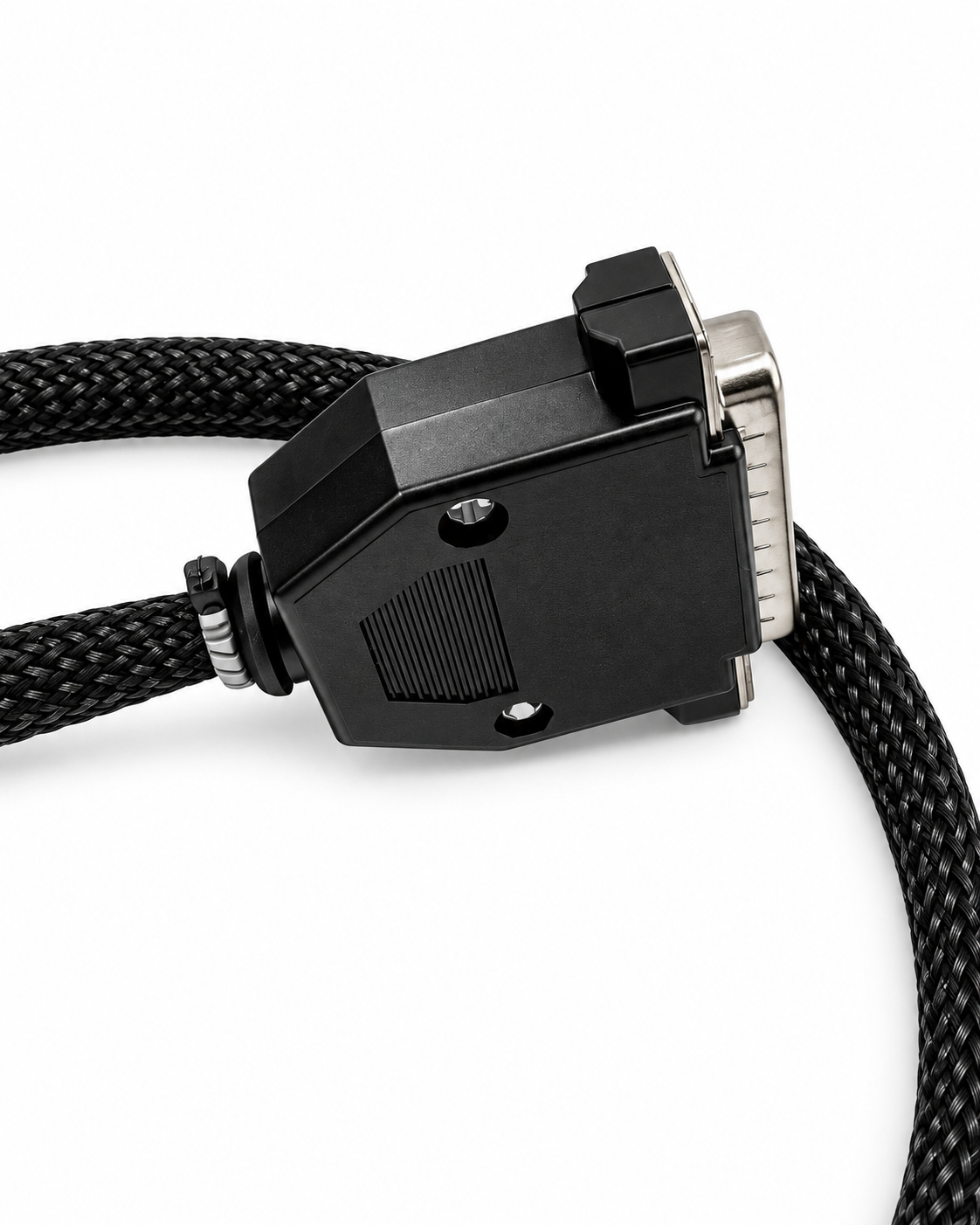

• Native NeXus | Q24 DSUB Connector: Purpose-built with a heavy-duty DSUB adapter for direct, one-click attachment to your NeXus-Q24 hardware. Eliminates individual touch-proof pin wear, tangling, and channel mapping errors.

• Full 10-20 System Layout: Complete international 10-20 electrode placement with built-in ground and reference, enabling fast, repeatable subject preparation in under five minutes.
